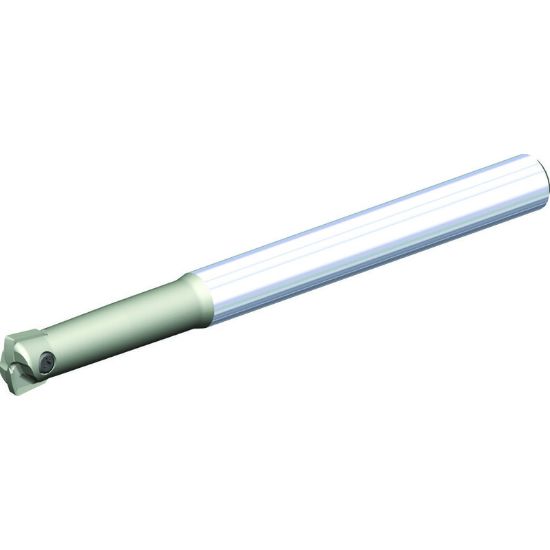

Picture of WIDIA/KENNAMETAL M270TD012A12L120C Milling Cutter 0.512 Cutter Diameter Cylindrical 0.472

WIDIA/KENNAMETAL M270TD012A12L120C Milling Cutter 0.512 Cutter Diameter Cylindrical 0.472

ANSI: M270TD012A12L120C

ISO: M270TD012A12L120C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3926520
Delivery date: 3-5 days
$597.27

Features And Benefits

High metal removal rates. Excellent in long reach applications. Carbide shank for higher rigidity.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling, Feed Milling
Insert Type Neutral
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Finishing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 0.4724 12.00MM
Tool Material Carbide
Depth Of Cut Max 0.0240
Cutter Dia 0.5120 13.00MM
Insert Size Ic 12
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 1
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 4.7240 119.99MM
Cutting & Machining Properties
Insert Style M2
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Flat Blade
Inter/Extern External
Hand R/L Right
