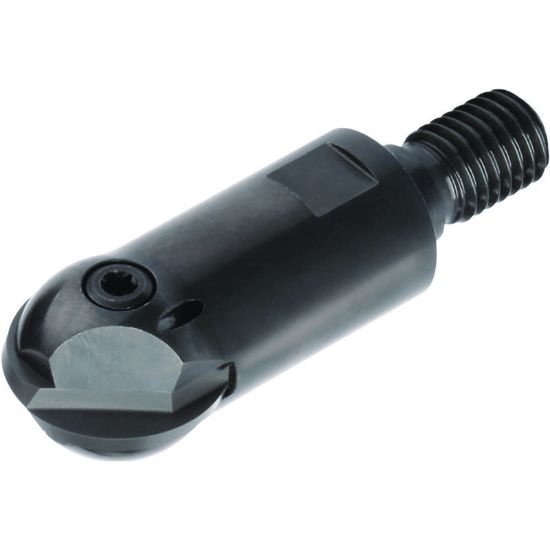

Picture of WIDIA/KENNAMETAL M270BD032M16 Milling Ball Mill Milling Cutter

WIDIA/KENNAMETAL M270BD032M16 Milling Ball Mill Milling Cutter

ANSI: M270BD032M16

ISO: M270BD032M16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2243629
Delivery date: 3-5 days
$418.36

Features And Benefits

Rough, semi-finishing, and finishing with one system. Through tool coolant. Secure and rigid insert clamping.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Application Profile Milling, Copy Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA No
Insert Type Neutral
Dimensional Specifications
Overall Len 2.8740 73.00MM
Insert Size Ic 32
Flutes/Inserts 1
Tool Material Steel
Depth Of Cut Max 0.6299
Cut Dia Min 1.2598 32.00MM
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Style M2
