Picture of WIDIA/KENNAMETAL M270BD025B25L145 Milling Ball Mill Milling Cutter

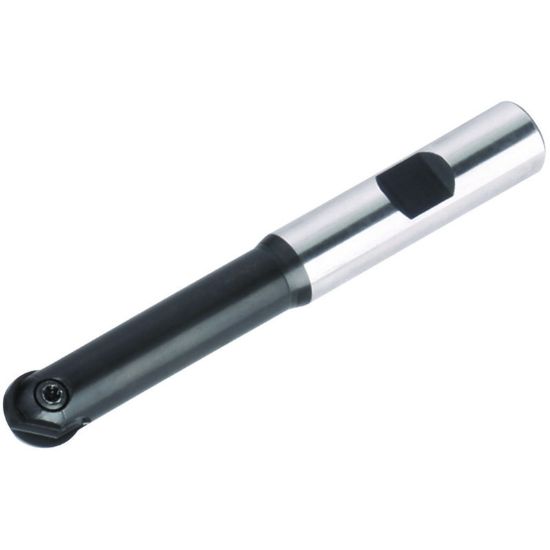

WIDIA/KENNAMETAL M270BD025B25L145 Milling Ball Mill Milling Cutter

ANSI: M270BD025B25L145

ISO: M270BD025B25L145

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2243622
Delivery date: 3-5 days
$385.71

Features And Benefits

Rough, semi-finishing, and finishing with one system. Secure and rigid insert clamping.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Insert/Tool Tool
Insert Type Neutral
Package Size 1
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.4921
Insert Size Ic 25
Cut Dia Min 0.9843 25.00MM - 63/64
Overall Len 5.7087 145.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 1
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Style M2
Coolant Thru No
