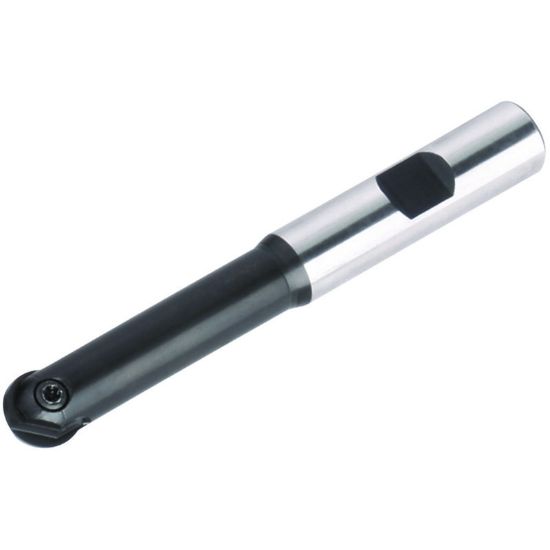

Picture of WIDIA/KENNAMETAL M270BD016B16L105 Milling Ball Mill Milling Cutter

WIDIA/KENNAMETAL M270BD016B16L105 Milling Ball Mill Milling Cutter

ANSI: M270BD016B16L105

ISO: M270BD016B16L105

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2243620
Delivery date: 3-5 days
$320.32

Features And Benefits

Rough, semi-finishing, and finishing with one system. Secure and rigid insert clamping.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling
Insert Type Neutral
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cut Dia Min 0.6299 16.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Overall Len 4.1339 105.00MM
Tool Material Steel
Depth Of Cut Max 0.3150
Flutes/Inserts 1
Cutting & Machining Properties
Insert Style M2
Hand R/L Right
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
