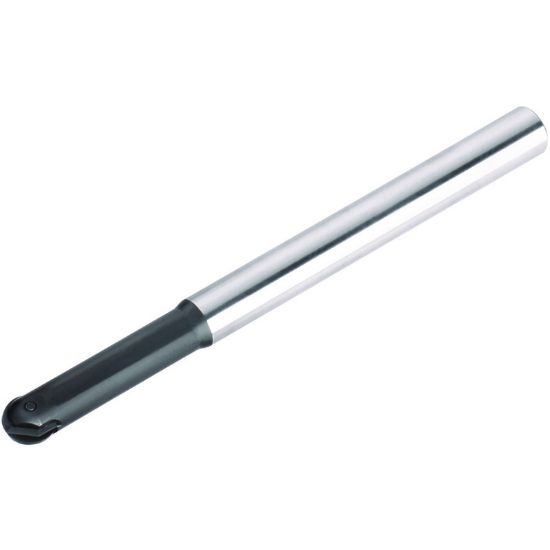

Picture of WIDIA/KENNAMETAL M270BD016A16L155 Milling Cutter Cutter Diameter Cylindrical 0.629

WIDIA/KENNAMETAL M270BD016A16L155 Milling Cutter Cutter Diameter Cylindrical 0.629

ANSI: M270BD016A16L155

ISO: M270BD016A16L155

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2067470
Delivery date: 3-5 days
$320.32

Features And Benefits

Rough, semi-finishing, and finishing with one system. Secure and rigid insert clamping.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Application Copy Milling, Profile Milling
Made In USA No
Insert Application Finishing, Semi Finishing
Insert Type Neutral
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.3150
Flutes/Inserts 1
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Overall Len 6.1020 154.99MM
Cut Dia Min 0.6300 16.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Style M2
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
Hand R/L Right
