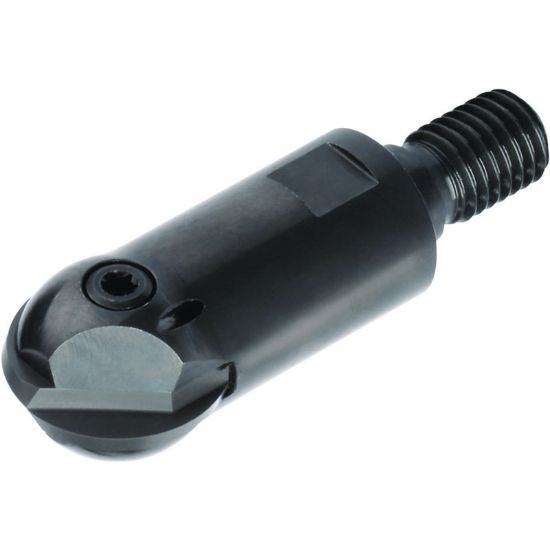

Picture of WIDIA/KENNAMETAL M270BD012M08 Milling Ball Mill Milling Cutter

WIDIA/KENNAMETAL M270BD012M08 Milling Ball Mill Milling Cutter

ANSI: M270BD012M08

ISO: M270BD012M08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2243625
Delivery date: 3-5 days
$300.72

Features And Benefits

Rough, semi-finishing, and finishing with one system. Through tool coolant. Secure and rigid insert clamping.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Neutral
Package Size 1
Made In USA No
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Depth Of Cut Max 0.2362
Flutes/Inserts 1
Cut Dia Min 0.4724 12.00MM
Machine Side Connection Type Screw On
Machine Side Connection Size M08
Insert Size Ic 12
Overall Len 1.6535 42.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru Yes
Hand R/L Right
Insert Style M2
