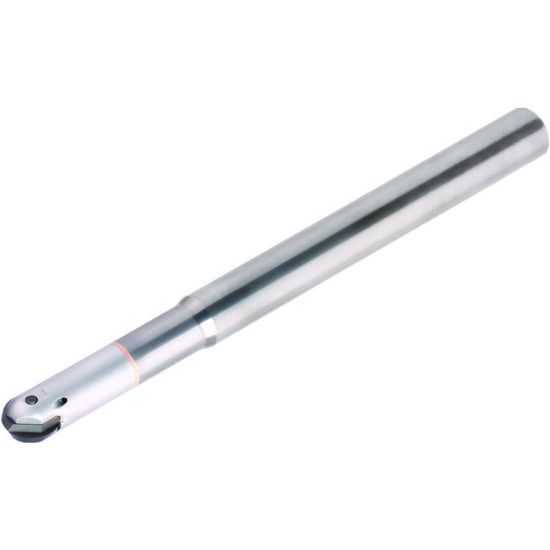

Picture of WIDIA/KENNAMETAL M270BD012A12L145C Milling Ball Mill Milling Cutter

WIDIA/KENNAMETAL M270BD012A12L145C Milling Ball Mill Milling Cutter

ANSI: M270BD012A12L145C

ISO: M270BD012A12L145C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2424587
Delivery date: 3-5 days
$601.43

Features And Benefits

Rough, semi-finishing, and finishing with one system. Through tool coolant. Carbide shank to improve rigidity.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Application Profile Milling, Copy Milling
Insert Type Neutral
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Insert Size Ic 12
Machine Side Connection Size 0.4724 12.00MM
Overall Len 5.7087 145.00MM
Flutes/Inserts 1
Cut Dia Min 0.4724 12.00MM
Tool Material Carbide
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Flat Blade
Inter/Extern External
Insert Style M2
