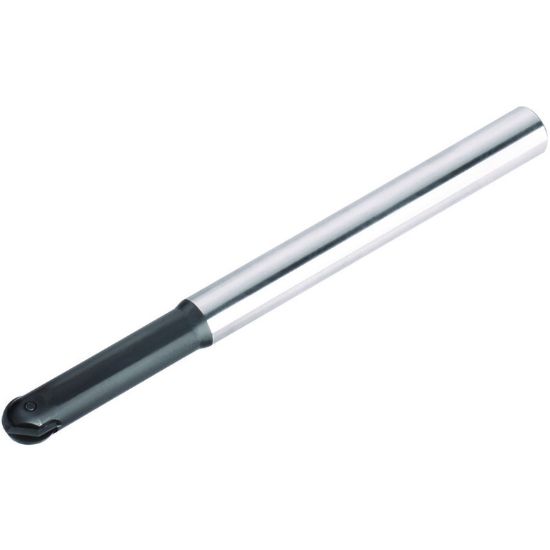

Picture of WIDIA/KENNAMETAL M270BD012A12L145 Milling Ball Mill Milling Cutter

WIDIA/KENNAMETAL M270BD012A12L145 Milling Ball Mill Milling Cutter

ANSI: M270BD012A12L145

ISO: M270BD012A12L145

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2243614
Delivery date: 3-5 days
$300.72

Features And Benefits

Rough, semi-finishing, and finishing with one system. Secure and rigid insert clamping.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Package Size 1
Shipping State Pennsylvania
Insert/Tool Tool
Insert Type Neutral
Dimensional Specifications
Insert Size Ic 12
Machine Side Connection Size 0.4724 12.00MM
Overall Len 5.7087 145.00MM
Flutes/Inserts 1
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.2362
Tool Material Steel
Cut Dia Min 0.4724 12.00MM
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Flat Blade
Inter/Extern External
Insert Style M2
Hand R/L Right
