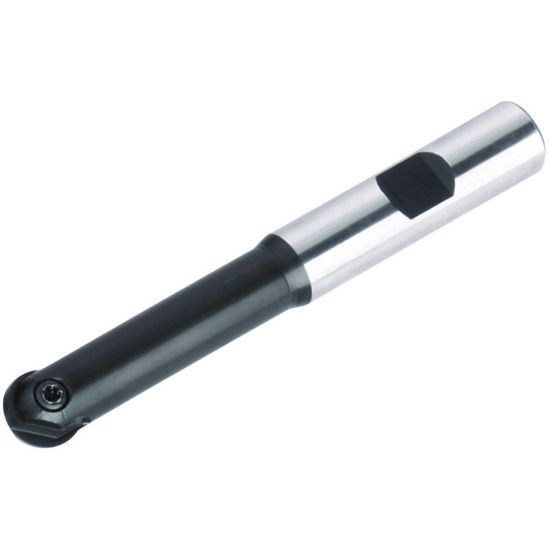

Picture of WIDIA/KENNAMETAL M270BD010B12L90 Milling Ball Mill Milling Cutter

WIDIA/KENNAMETAL M270BD010B12L90 Milling Ball Mill Milling Cutter

ANSI: M270BD010B12L90

ISO: M270BD010B12L90

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2243618
Delivery date: 3-5 days
$287.64

Features And Benefits

Rough, semi-finishing, and finishing with one system. Secure and rigid insert clamping.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Neutral
Package Size 1
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Min 0.3937 10.00MM
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.5433 90.00MM
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 1
Insert Size Ic 10
Depth Of Cut Max 0.1969
Tool Material Steel
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Flat Blade
Inter/Extern External
Coolant Thru No
Insert Style M2
