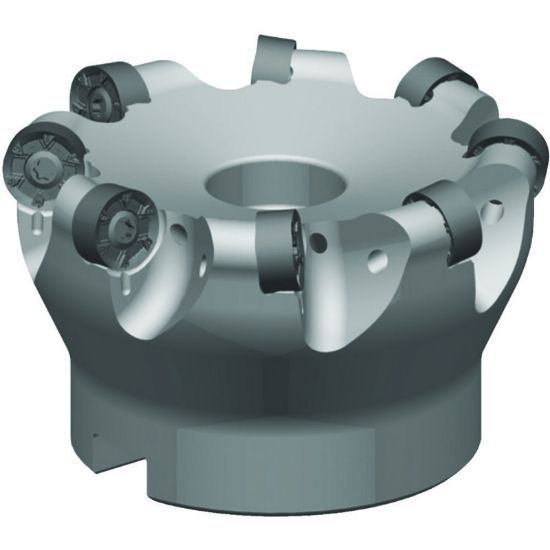

Picture of WIDIA/KENNAMETAL M200D80Z05RN16 Button Cutter Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL M200D80Z05RN16 Button Cutter Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

ANSI: M200D80Z05RN16

ISO: M200D80Z05RN16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210214
Delivery date: 3-5 days
$703.28

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Application Round Milling, Pocket Milling, Face Milling, Ramp Milling
Made In USA No
Insert Type Negative
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Overall Len 1.9690 50.01MM
Flutes/Inserts 5
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Insert Size Ic 16
Tool Material Steel
Depth Of Cut Max 0.1560
Cut Dia Min 2.5200 64.01MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RN
