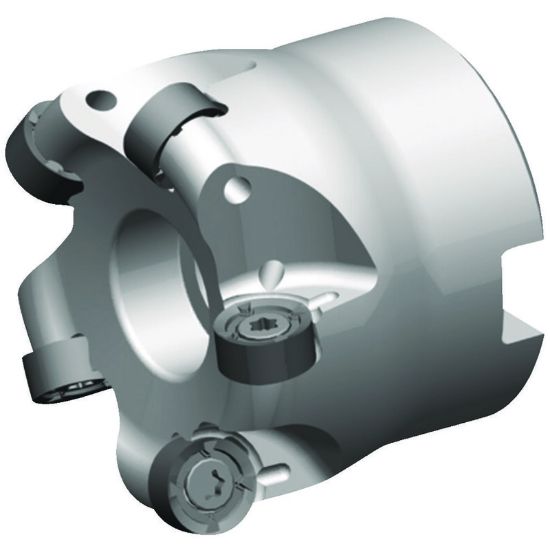

Picture of WIDIA/KENNAMETAL M200D52Z06RN10 Button Cutter Milling Cutter 2.047 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M200D52Z06RN10 Button Cutter Milling Cutter 2.047 Cutter Diameter Face Mill 0.866

ANSI: M200D52Z06RN10

ISO: M200D52Z06RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210309
Delivery date: 3-5 days
$649.37

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Round Milling, Ramp Milling, Face Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Cutter Dia 2.0470 51.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 6
Insert Size Ic 10
Depth Of Cut Max 0.1950
Cut Dia Min 1.6540 42.01MM
Overall Len 1.9690 50.01MM
Cutting & Machining Properties
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
