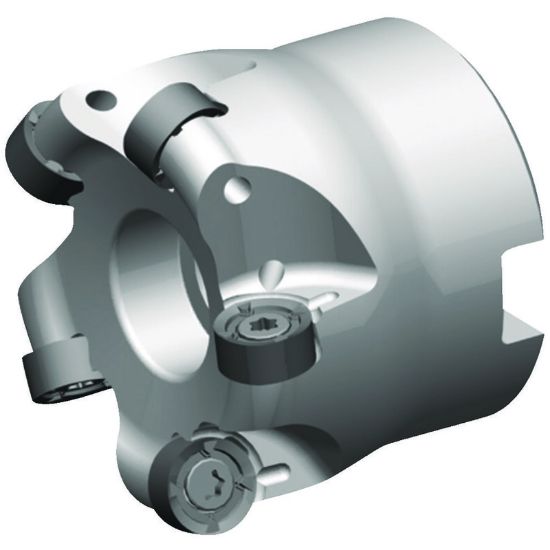

Picture of WIDIA/KENNAMETAL M200D50Z06RN10 Button Cutter Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M200D50Z06RN10 Button Cutter Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

ANSI: M200D50Z06RN10

ISO: M200D50Z06RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210308
Delivery date: 3-5 days
$649.37

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Face Milling, Round Milling, Pocket Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cutter Dia 1.9690 50.01MM
Flutes/Inserts 6
Insert Size Ic 10
Depth Of Cut Max 0.1950
Cut Dia Min 1.5750 40.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Cutting & Machining Properties
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
