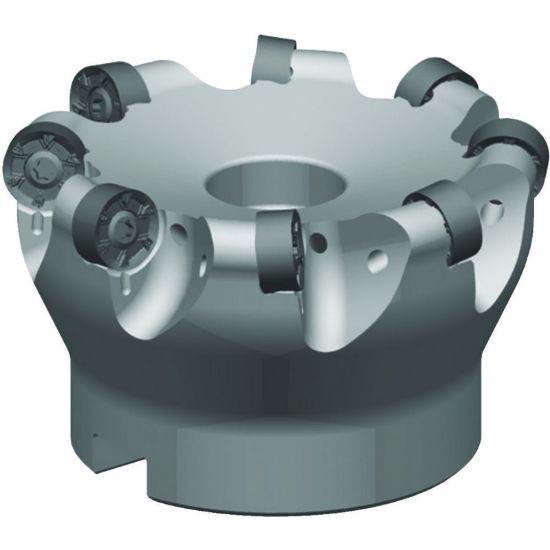

Picture of WIDIA/KENNAMETAL M200D50Z04RN16 Button Cutter Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M200D50Z04RN16 Button Cutter Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

ANSI: M200D50Z04RN16

ISO: M200D50Z04RN16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5209989
Delivery date: 3-5 days
$626.63

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Face Milling, Round Milling, Pocket Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Depth Of Cut Max 0.1560
Cut Dia Min 1.3390 34.01MM
Cutter Dia 1.9690 50.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Overall Len 1.9690 50.01MM
Tool Material Steel
Insert Size Ic 16
Cutting & Machining Properties
Insert Style RN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
