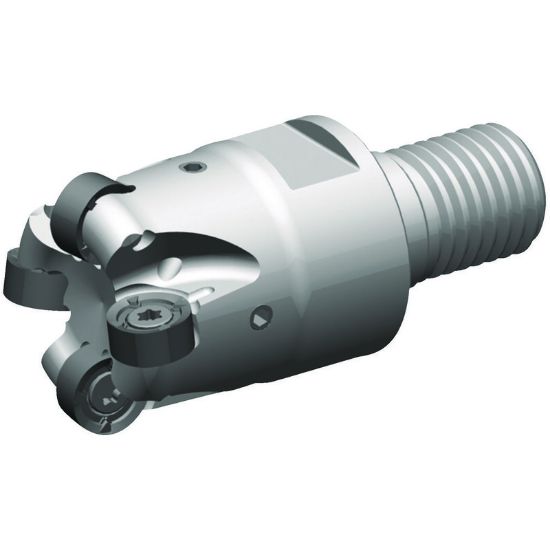

Picture of WIDIA/KENNAMETAL M200D42Z06M16RN10 Button Cutter Milling Cutter 1.654 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M200D42Z06M16RN10 Button Cutter Milling Cutter 1.654 Cutter Diameter Screw On M16

ANSI: M200D42Z06M16RN10

ISO: M200D42Z06M16RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210276
Delivery date: 3-5 days
$666.23

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Face Milling, Pocket Milling
Made In USA No
Insert/Tool Tool
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size M16
Insert Size Ic 10
Depth Of Cut Max 0.1960
Machine Side Connection Type Screw On
Cut Dia Min 1.2600 32.00MM
Flutes/Inserts 6
Cutter Dia 1.6540 42.11MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
