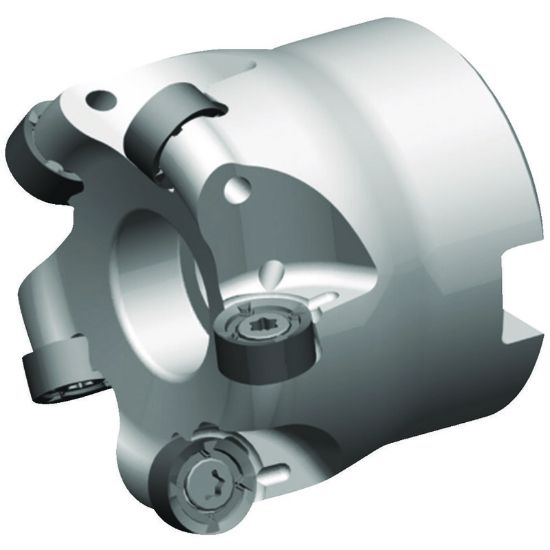

WIDIA/KENNAMETAL M200D40Z06RN10 Button Cutter Milling Cutter 1.575 Cutter Diameter Face Mill 0.629

ANSI: M200D40Z06RN10

ISO: M200D40Z06RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210306
Delivery date: 3-5 days
$560.52

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 10
Depth Of Cut Max 0.1950
Tool Material Steel
Overall Len 1.5750 40.01MM
Flutes/Inserts 6
Cut Dia Min 1.1810 30.00MM
Cutter Dia 1.5750 40.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.6299 16.00MM
Cutting & Machining Properties
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
