  • WIDIA/KENNAMETAL M200D400Z09S150RN12 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

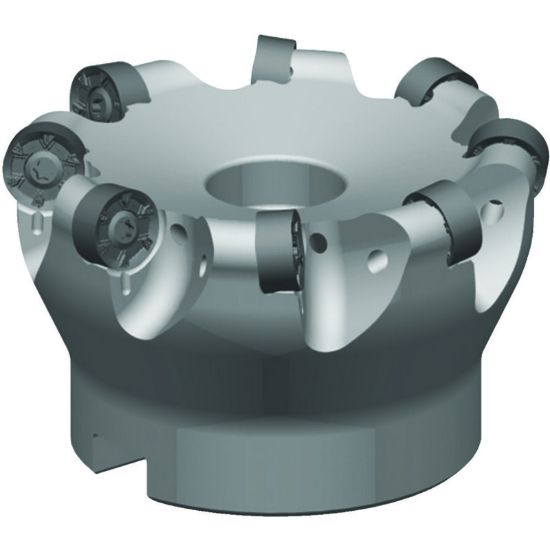

Picture of WIDIA/KENNAMETAL M200D400Z09S150RN12 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

WIDIA/KENNAMETAL M200D400Z09S150RN12 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

ANSI: M200D400Z09S150RN12

ISO: M200D400Z09S150RN12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5068406
Delivery date: 3-5 days
$839.20

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Ramp Milling, Round Milling, Face Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 9
Tool Material Steel
Overall Len 2.0000 50.80MM
Insert Size Ic 12
Cut Dia Min 3.5280 89.61MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.1170
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RN
