  • WIDIA/KENNAMETAL M200D400Z08S150RN16 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

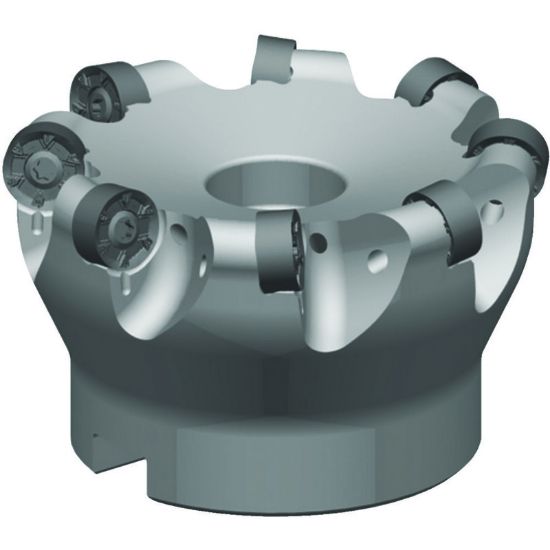

Picture of WIDIA/KENNAMETAL M200D400Z08S150RN16 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

WIDIA/KENNAMETAL M200D400Z08S150RN16 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

ANSI: M200D400Z08S150RN16

ISO: M200D400Z08S150RN16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283526
Delivery date: 3-5 days
$740.95

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Ramp Milling, Round Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.1560
Machine Side Connection Size 1.5000 38.10MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Cut Dia Min 3.3700 85.60MM
Cutter Dia 4.0000 101.60MM
Insert Size Ic 16
Flutes/Inserts 8
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RN
