  • WIDIA/KENNAMETAL M200D400Z06S150RN16 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

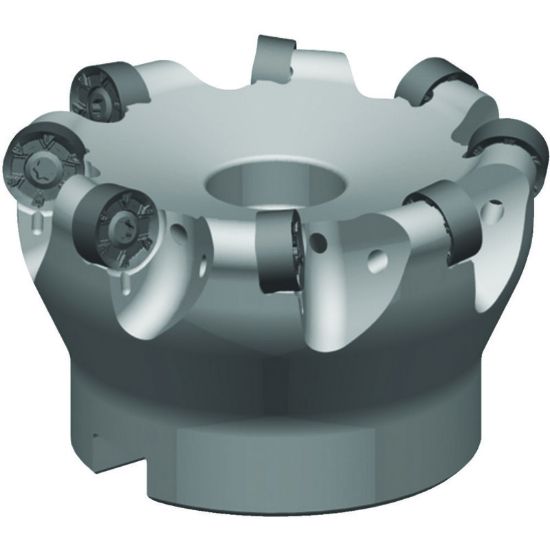

Picture of WIDIA/KENNAMETAL M200D400Z06S150RN16 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

WIDIA/KENNAMETAL M200D400Z06S150RN16 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

ANSI: M200D400Z06S150RN16

ISO: M200D400Z06S150RN16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283525
Delivery date: 3-5 days
$604.79

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Round Milling, Face Milling, Ramp Milling
Shipping State Pennsylvania
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.1560
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 16
Flutes/Inserts 6
Cutter Dia 4.0000 101.60MM
Cut Dia Min 3.3700 85.60MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
