  • WIDIA/KENNAMETAL M200D400Z05S125RN64 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.250

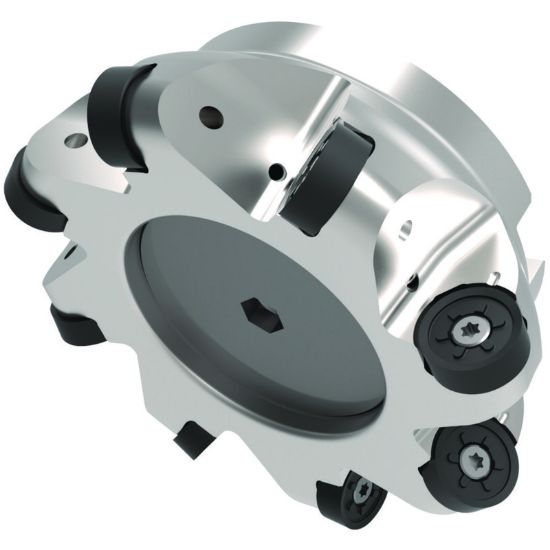

Picture of WIDIA/KENNAMETAL M200D400Z05S125RN64 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.250

WIDIA/KENNAMETAL M200D400Z05S125RN64 Button Cutter Milling Cutter 4.000 Cutter Diameter Face Mill 1.250

ANSI: M200D400Z05S125RN64

ISO: M200D400Z05S125RN64

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6009963
Delivery date: 3-5 days
$832.43

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Excellent for heavy roughing and semi-finishing of all materials. Suitable for high-feed face milling operations.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Negative
Shipping State Pennsylvania
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3700
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 2.0000 50.80MM
Cutter Dia 4.0000 101.60MM
Insert Size Ic 64
Flutes/Inserts 5
Cut Dia Min 3.2500 82.55MM - 3-1/4
Cutting & Machining Properties
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
