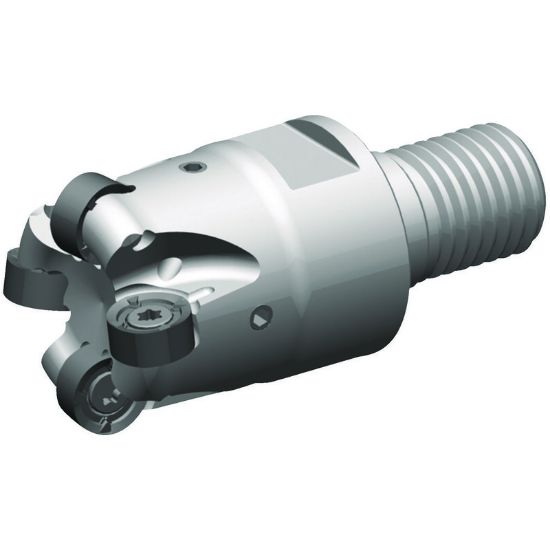

Picture of WIDIA/KENNAMETAL M200D35Z05M16RN10 Button Cutter Milling Cutter 1.378 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M200D35Z05M16RN10 Button Cutter Milling Cutter 1.378 Cutter Diameter Screw On M16

ANSI: M200D35Z05M16RN10

ISO: M200D35Z05M16RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210275
Delivery date: 3-5 days
$590.41

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Negative
Application Round Milling, Ramp Milling, Face Milling, Pocket Milling
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 10
Cutter Dia 1.3780 35.00MM
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Depth Of Cut Max 0.1950
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RN
