  • WIDIA/KENNAMETAL M200D300Z08S100RN12 Button Cutter Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

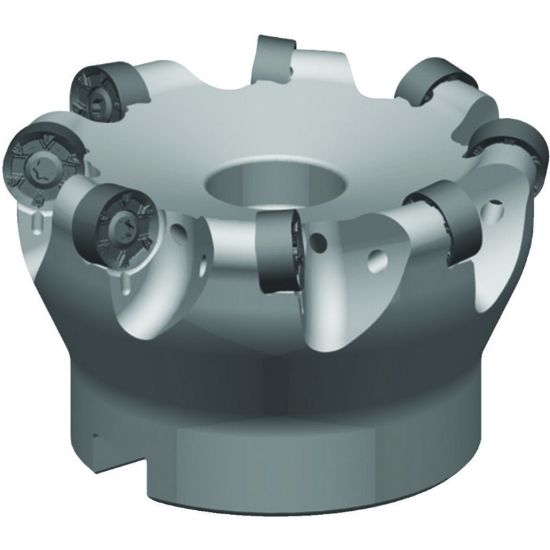

Picture of WIDIA/KENNAMETAL M200D300Z08S100RN12 Button Cutter Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

WIDIA/KENNAMETAL M200D300Z08S100RN12 Button Cutter Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

ANSI: M200D300Z08S100RN12

ISO: M200D300Z08S100RN12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5068405
Delivery date: 3-5 days
$657.93

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Face Milling, Round Milling, Pocket Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 12
Cut Dia Min 2.5280 64.21MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 3.0000 76.20MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Depth Of Cut Max 0.1170
Flutes/Inserts 8
Cutting & Machining Properties
Insert Style RN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
