  • WIDIA/KENNAMETAL M200D28Z03A25RN10L200 Button Cutter Milling Cutter 1.102 Cutter Diameter Cylindrical 0.984

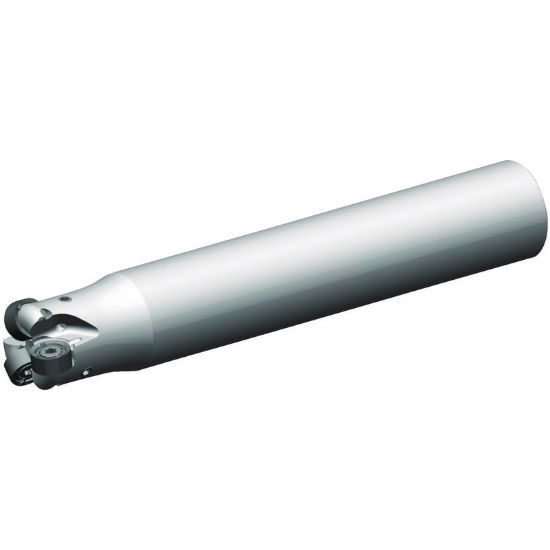

Picture of WIDIA/KENNAMETAL M200D28Z03A25RN10L200 Button Cutter Milling Cutter 1.102 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL M200D28Z03A25RN10L200 Button Cutter Milling Cutter 1.102 Cutter Diameter Cylindrical 0.984

ANSI: M200D28Z03A25RN10L200

ISO: M200D28Z03A25RN10L200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210302
Delivery date: 3-5 days
$455.64

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 3
Cutter Dia 1.1020 27.99MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Overall Len 7.8740 200.00MM
Insert Size Ic 10
Depth Of Cut Max 0.1950
Tool Material Steel
Cut Dia Min 0.7090 18.01MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RN
