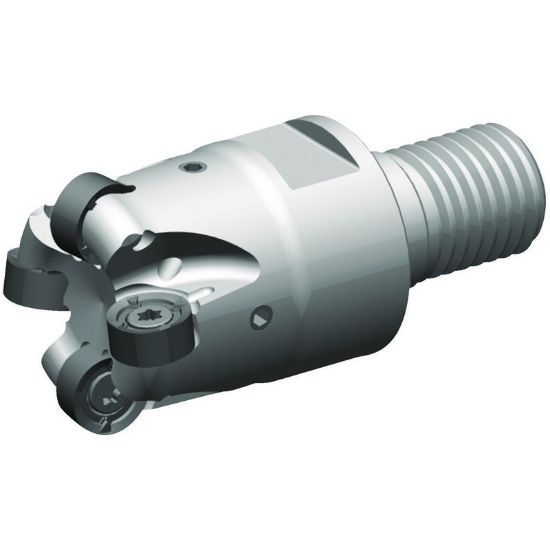

Picture of WIDIA/KENNAMETAL M200D25Z03M12RN10 Button Cutter Milling Cutter 0.984 Cutter Diameter Screw On M12

WIDIA/KENNAMETAL M200D25Z03M12RN10 Button Cutter Milling Cutter 0.984 Cutter Diameter Screw On M12

ANSI: M200D25Z03M12RN10

ISO: M200D25Z03M12RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210273
Delivery date: 3-5 days
$481.60

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 0.9840 24.99MM
Insert Size Ic 10
Depth Of Cut Max 0.1950
Tool Material Steel
Cut Dia Min 0.5910 15.01MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RN
Coolant Thru Yes
