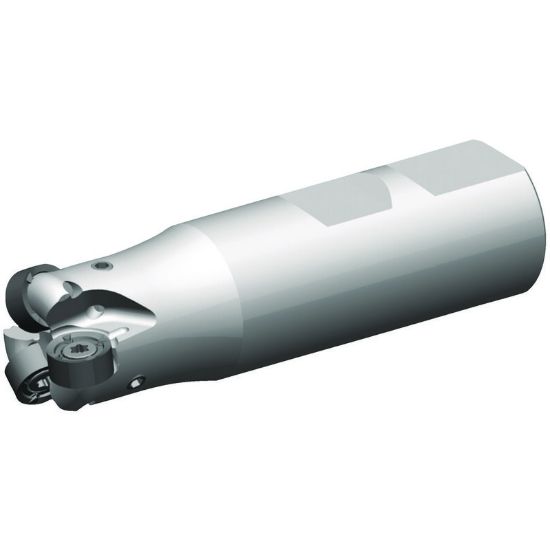

Picture of WIDIA/KENNAMETAL M200D25Z03B25RN10 Button Cutter Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL M200D25Z03B25RN10 Button Cutter Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

ANSI: M200D25Z03B25RN10

ISO: M200D25Z03B25RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210277
Delivery date: 3-5 days
$428.72

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Cut Dia Min 0.5910 15.01MM
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Overall Len 3.5040 89.00MM
Insert Size Ic 10
Depth Of Cut Max 0.1950
Cutting & Machining Properties
Insert Style RN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
