  • WIDIA/KENNAMETAL M200D25Z03A32RN10L250 Button Cutter Milling Cutter 0.984 Cutter Diameter Cylindrical 1.259

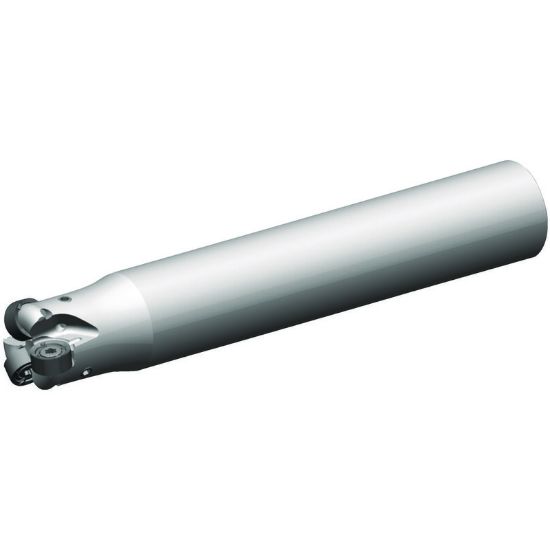

Picture of WIDIA/KENNAMETAL M200D25Z03A32RN10L250 Button Cutter Milling Cutter 0.984 Cutter Diameter Cylindrical 1.259

WIDIA/KENNAMETAL M200D25Z03A32RN10L250 Button Cutter Milling Cutter 0.984 Cutter Diameter Cylindrical 1.259

ANSI: M200D25Z03A32RN10L250

ISO: M200D25Z03A32RN10L250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210301
Delivery date: 3-5 days
$464.79

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Negative
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 3
Shank/Pilot Dia 1.2598 32.00MM
Insert Size Ic 10
Depth Of Cut Max 0.1950
Cut Dia Min 0.5910 15.01MM
Overall Len 9.8430 250.01MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RN
