  • WIDIA/KENNAMETAL M200D25Z03A25RN10L150 Button Cutter Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

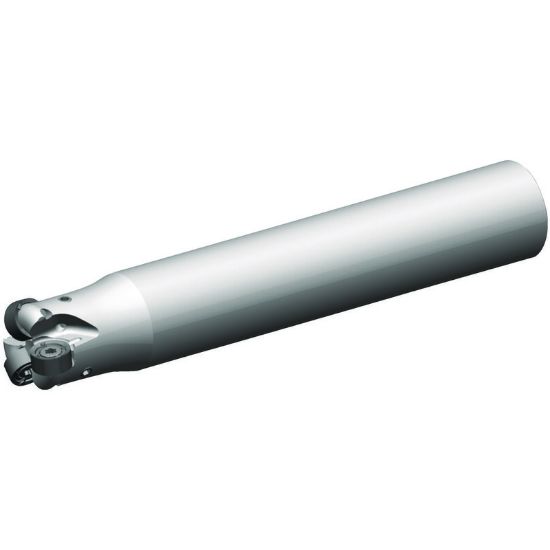

Picture of WIDIA/KENNAMETAL M200D25Z03A25RN10L150 Button Cutter Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL M200D25Z03A25RN10L150 Button Cutter Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

ANSI: M200D25Z03A25RN10L150

ISO: M200D25Z03A25RN10L150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210279
Delivery date: 3-5 days
$432.08

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Round Milling, Face Milling, Ramp Milling
Shipping State Pennsylvania
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.1950
Tool Material Steel
Cutter Dia 0.9840 24.99MM
Overall Len 5.9060 150.01MM
Insert Size Ic 10
Flutes/Inserts 3
Machine Side Connection Type Cylindrical
Cut Dia Min 0.5910 15.01MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Cutting & Machining Properties
Insert Style RN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
