  • WIDIA/KENNAMETAL M200D250Z05S100RN16 Button Cutter Milling Cutter 2.500 Cutter Diameter Face Mill 1.000

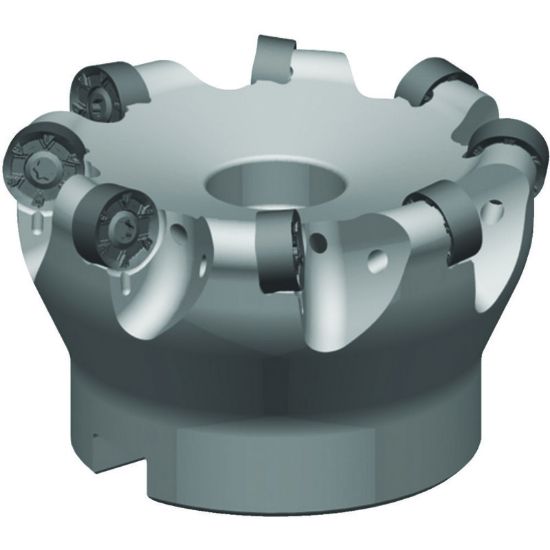

Picture of WIDIA/KENNAMETAL M200D250Z05S100RN16 Button Cutter Milling Cutter 2.500 Cutter Diameter Face Mill 1.000

WIDIA/KENNAMETAL M200D250Z05S100RN16 Button Cutter Milling Cutter 2.500 Cutter Diameter Face Mill 1.000

ANSI: M200D250Z05S100RN16

ISO: M200D250Z05S100RN16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283522
Delivery date: 3-5 days
$516.96

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Face Milling, Pocket Milling
Made In USA No
Insert/Tool Tool
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.5000 63.50MM - 2-1/2
Flutes/Inserts 5
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.1560
Insert Size Ic 16
Cut Dia Min 1.8700 47.50MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
