  • WIDIA/KENNAMETAL M200D250Z04S075RN64 Button Cutter Milling Cutter 2.500 Cutter Diameter Face Mill 0.750

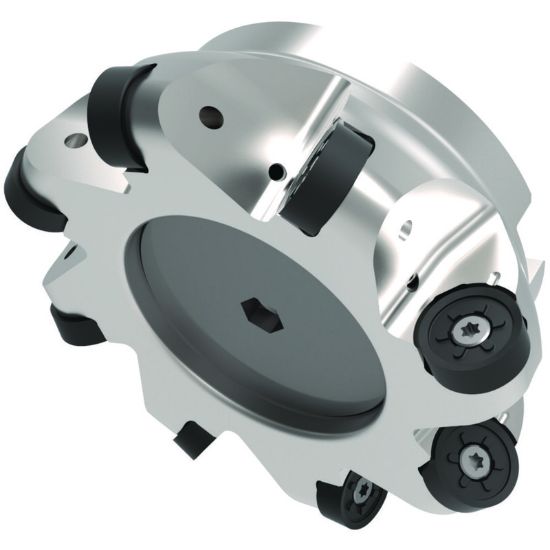

Picture of WIDIA/KENNAMETAL M200D250Z04S075RN64 Button Cutter Milling Cutter 2.500 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M200D250Z04S075RN64 Button Cutter Milling Cutter 2.500 Cutter Diameter Face Mill 0.750

ANSI: M200D250Z04S075RN64

ISO: M200D250Z04S075RN64

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6009961
Delivery date: 3-5 days
$672.05

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Excellent for heavy roughing and semi-finishing of all materials. Suitable for high-feed face milling operations.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Application Pocket Milling, Round Milling, Ramp Milling, Face Milling
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Flutes/Inserts 4
Insert Size Ic 64
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.3700
Cut Dia Min 1.7500 44.45MM - 1-3/4
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RN
