  • WIDIA/KENNAMETAL M200D200Z05S075RN12 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

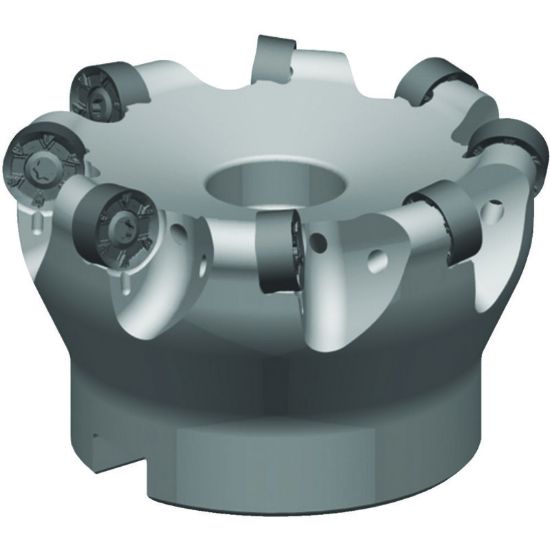

Picture of WIDIA/KENNAMETAL M200D200Z05S075RN12 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M200D200Z05S075RN12 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

ANSI: M200D200Z05S075RN12

ISO: M200D200Z05S075RN12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5068403
Delivery date: 3-5 days
$476.67

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Round Milling, Face Milling, Ramp Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Depth Of Cut Max 0.1170
Cutter Dia 2.0000 50.80MM
Insert Size Ic 12
Cut Dia Min 1.5280 38.81MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Style RN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
