  • WIDIA/KENNAMETAL M200D200Z04S075RN16 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

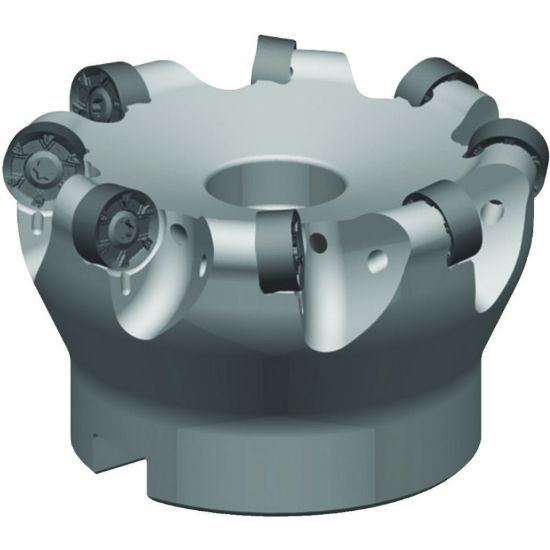

Picture of WIDIA/KENNAMETAL M200D200Z04S075RN16 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M200D200Z04S075RN16 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

ANSI: M200D200Z04S075RN16

ISO: M200D200Z04S075RN16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283521
Delivery date: 3-5 days
$454.08

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Round Milling, Ramp Milling, Face Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Flutes/Inserts 4
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 0.1560
Insert Size Ic 16
Cut Dia Min 1.3700 34.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RN
