  • WIDIA/KENNAMETAL M200D200Z04S075RN12 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

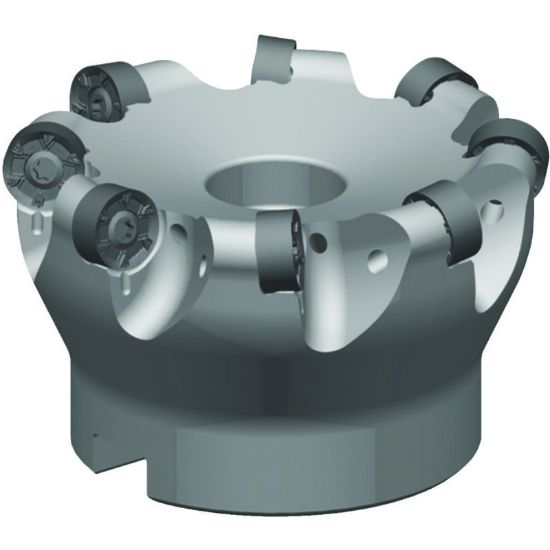

Picture of WIDIA/KENNAMETAL M200D200Z04S075RN12 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M200D200Z04S075RN12 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

ANSI: M200D200Z04S075RN12

ISO: M200D200Z04S075RN12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5068402
Delivery date: 3-5 days
$435.05

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Face Milling, Pocket Milling, Round Milling
Insert/Tool Tool
Package Size 1
Insert Type Negative
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.1170
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 1.5280 38.81MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.0000 50.80MM
Insert Size Ic 12
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style RN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
