  • WIDIA/KENNAMETAL M200D200Z04S075RN10 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

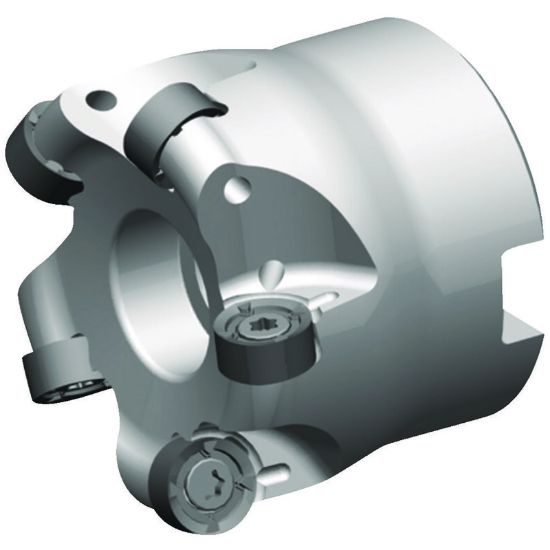

Picture of WIDIA/KENNAMETAL M200D200Z04S075RN10 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M200D200Z04S075RN10 Button Cutter Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

ANSI: M200D200Z04S075RN10

ISO: M200D200Z04S075RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283483
Delivery date: 3-5 days
$460.84

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.0000 50.80MM
Flutes/Inserts 4
Insert Size Ic 10
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.2000
Cutter Dia 2.0000 50.80MM
Cut Dia Min 1.6060 40.79MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RN
