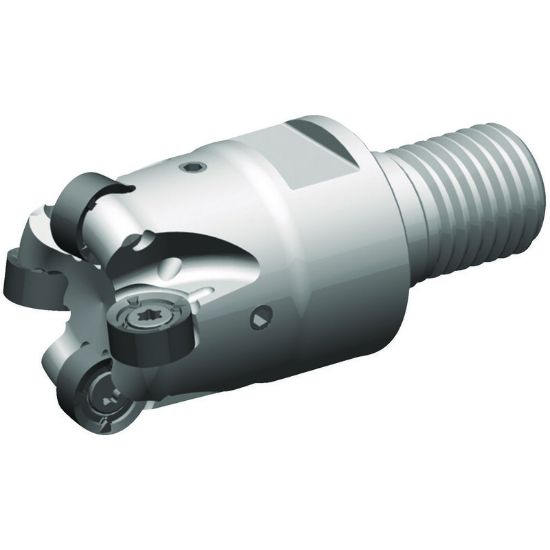

Picture of WIDIA/KENNAMETAL M200D150Z05M16RN10 Button Cutter Milling Cutter 1.500 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M200D150Z05M16RN10 Button Cutter Milling Cutter 1.500 Cutter Diameter Screw On M16

ANSI: M200D150Z05M16RN10

ISO: M200D150Z05M16RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283435
Delivery date: 3-5 days
$433.92

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Face Milling, Ramp Milling, Round Milling
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Cut Dia Min 1.1060 28.09MM
Machine Side Connection Type Screw On
Insert Size Ic 10
Tool Material Steel
Flutes/Inserts 5
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size M16
Depth Of Cut Max 0.2000
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
