  • WIDIA/KENNAMETAL M200D150Z04S050RN12 Button Cutter Milling Cutter 1.500 Cutter Diameter Face Mill 0.500

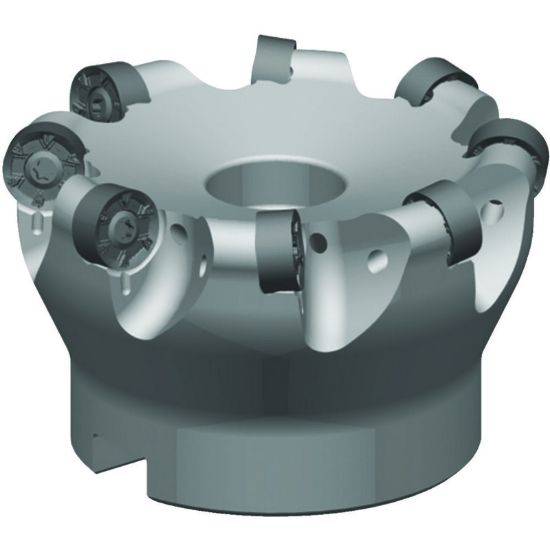

Picture of WIDIA/KENNAMETAL M200D150Z04S050RN12 Button Cutter Milling Cutter 1.500 Cutter Diameter Face Mill 0.500

WIDIA/KENNAMETAL M200D150Z04S050RN12 Button Cutter Milling Cutter 1.500 Cutter Diameter Face Mill 0.500

ANSI: M200D150Z04S050RN12

ISO: M200D150Z04S050RN12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5068401
Delivery date: 3-5 days
$411.68

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Depth Of Cut Max 0.1170
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Min 1.0280 26.11MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Tool Material Steel
Overall Len 1.5700 39.88MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RN
Coolant Thru Yes
