  • WIDIA/KENNAMETAL M200D150Z03S050RN10 Button Cutter Milling Cutter 1.500 Cutter Diameter Face Mill 0.500

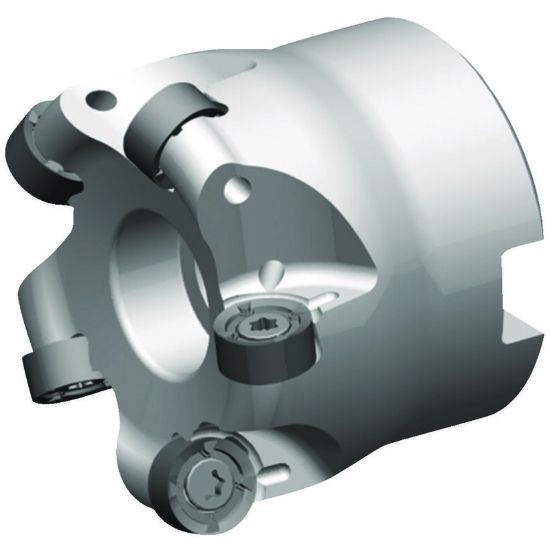

Picture of WIDIA/KENNAMETAL M200D150Z03S050RN10 Button Cutter Milling Cutter 1.500 Cutter Diameter Face Mill 0.500

WIDIA/KENNAMETAL M200D150Z03S050RN10 Button Cutter Milling Cutter 1.500 Cutter Diameter Face Mill 0.500

ANSI: M200D150Z03S050RN10

ISO: M200D150Z03S050RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283481
Delivery date: 3-5 days
$382.65

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Round Milling, Face Milling
Shipping State Pennsylvania
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 1.1060 28.09MM
Tool Material Steel
Overall Len 1.5700 39.88MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.5000 12.70MM
Depth Of Cut Max 0.2000
Cutter Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 10
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
