  • WIDIA/KENNAMETAL M200D150Z03C150RN12L900 Button Cutter Milling Cutter 1.500 Cutter Diameter Cylindrical 1.500

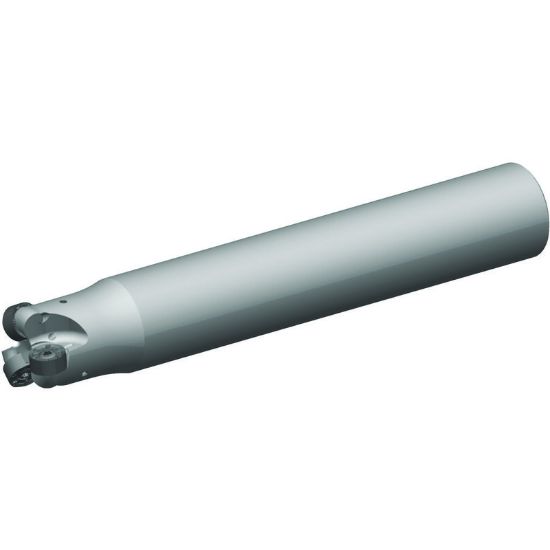

Picture of WIDIA/KENNAMETAL M200D150Z03C150RN12L900 Button Cutter Milling Cutter 1.500 Cutter Diameter Cylindrical 1.500

WIDIA/KENNAMETAL M200D150Z03C150RN12L900 Button Cutter Milling Cutter 1.500 Cutter Diameter Cylindrical 1.500

ANSI: M200D150Z03C150RN12L900

ISO: M200D150Z03C150RN12L900

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5068400
Delivery date: 3-5 days
$357.17

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 3
Insert Size Ic 12
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.1170
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Min 1.0280 26.11MM
Machine Side Connection Type Cylindrical
Tool Material Steel
Overall Len 9.2500 234.95MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
