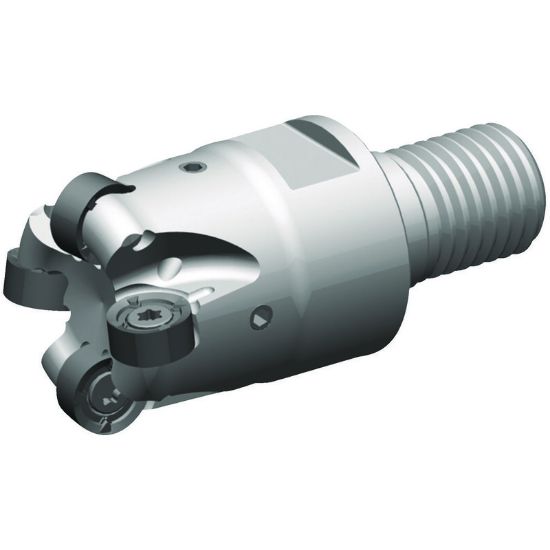

Picture of WIDIA/KENNAMETAL M200D125Z04M16RN10 Button Cutter Milling Cutter 1.250 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M200D125Z04M16RN10 Button Cutter Milling Cutter 1.250 Cutter Diameter Screw On M16

ANSI: M200D125Z04M16RN10

ISO: M200D125Z04M16RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283434
Delivery date: 3-5 days
$417.13

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Ramp Milling, Round Milling, Face Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Tool Material Steel
Machine Side Connection Size M16
Cut Dia Min 0.8560 21.74MM
Flutes/Inserts 4
Insert Size Ic 10
Depth Of Cut Max 0.2000
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style RN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
