  • WIDIA/KENNAMETAL M200D125Z03W125RN10 Button Cutter Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

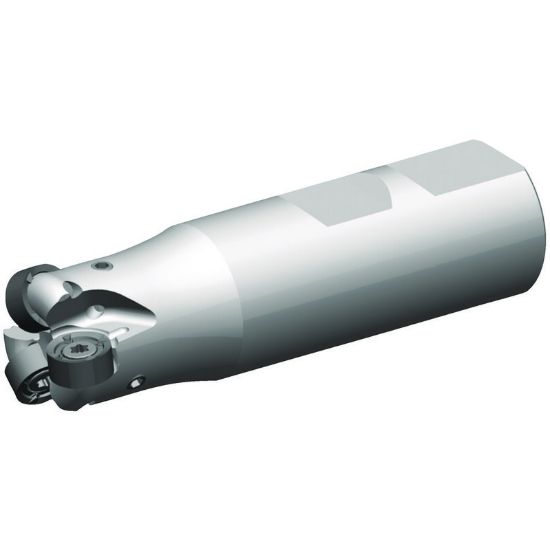

Picture of WIDIA/KENNAMETAL M200D125Z03W125RN10 Button Cutter Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL M200D125Z03W125RN10 Button Cutter Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

ANSI: M200D125Z03W125RN10

ISO: M200D125Z03W125RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283437
Delivery date: 3-5 days
$392.76

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Face Milling, Pocket Milling, Ramp Milling, Round Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2000
Machine Side Connection Type Cylindrical
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 4.2800 108.71MM
Cut Dia Min 0.8560 21.74MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RN
