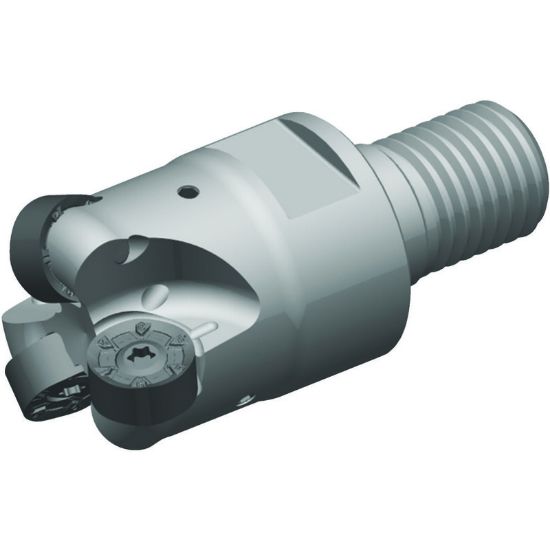

Picture of WIDIA/KENNAMETAL M200D125Z03M16RN12 Button Cutter Milling Cutter 1.250 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M200D125Z03M16RN12 Button Cutter Milling Cutter 1.250 Cutter Diameter Screw On M16

ANSI: M200D125Z03M16RN12

ISO: M200D125Z03M16RN12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5068352
Delivery date: 3-5 days
$384.01

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Package Size 1
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Cut Dia Min 0.7780 19.76MM
Tool Material Steel
Depth Of Cut Max 0.1170
Flutes/Inserts 3
Insert Size Ic 12
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Insert Style RN
