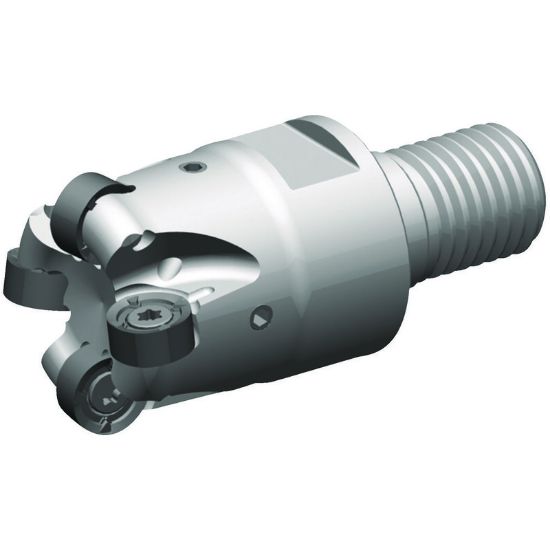

Picture of WIDIA/KENNAMETAL M200D125Z03M16RN10 Button Cutter Milling Cutter 1.250 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL M200D125Z03M16RN10 Button Cutter Milling Cutter 1.250 Cutter Diameter Screw On M16

ANSI: M200D125Z03M16RN10

ISO: M200D125Z03M16RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283433
Delivery date: 3-5 days
$404.91

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Face Milling, Round Milling, Pocket Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size M16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Insert Size Ic 10
Flutes/Inserts 3
Cut Dia Min 0.8560 21.74MM
Tool Material Steel
Depth Of Cut Max 0.2000
Cutting & Machining Properties
Insert Style RN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
