  • WIDIA/KENNAMETAL M200D125Z03C125RN10L900 Button Cutter Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

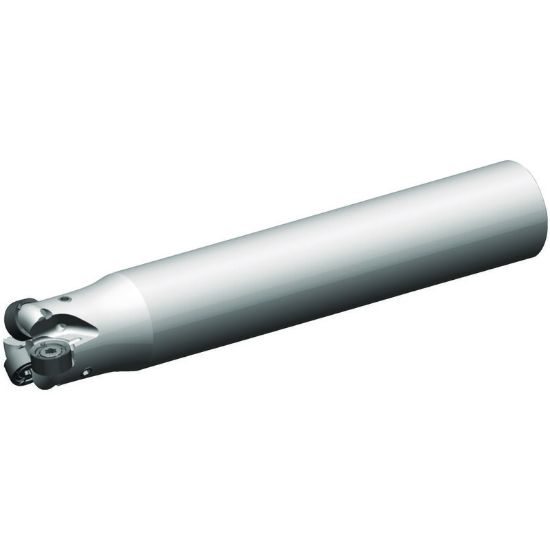

Picture of WIDIA/KENNAMETAL M200D125Z03C125RN10L900 Button Cutter Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL M200D125Z03C125RN10L900 Button Cutter Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

ANSI: M200D125Z03C125RN10L900

ISO: M200D125Z03C125RN10L900

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283480
Delivery date: 3-5 days
$403.55

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Cut Dia Min 0.8560 21.74MM
Overall Len 9.0000 228.60MM
Depth Of Cut Max 0.2000
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Machine Side Connection Size 1.2500 31.75MM
Tool Material Steel
Cutting & Machining Properties
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
