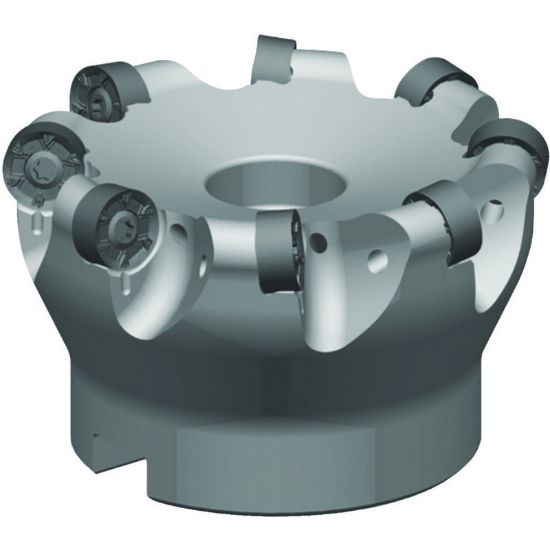

Picture of WIDIA/KENNAMETAL M200D100Z08RN16 Button Cutter Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL M200D100Z08RN16 Button Cutter Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

ANSI: M200D100Z08RN16

ISO: M200D100Z08RN16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5210217
Delivery date: 3-5 days
$1,022.49

Features And Benefits

Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Pocket Milling, Face Milling, Round Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Insert Size Ic 16
Cut Dia Min 3.3070 84.00MM
Flutes/Inserts 8
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Depth Of Cut Max 0.1560
Overall Len 1.9690 50.01MM
Cutting & Machining Properties
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
