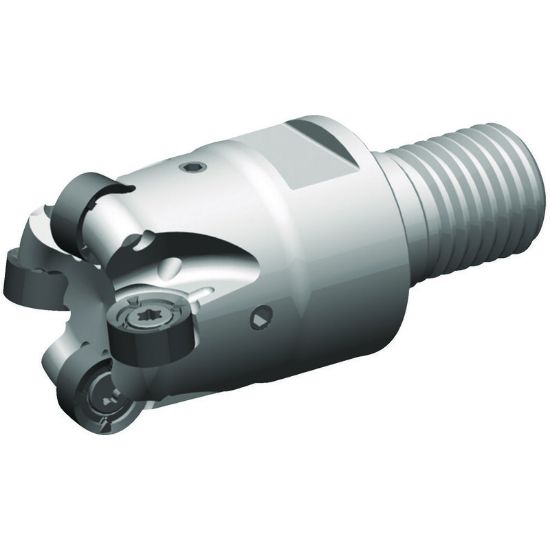

Picture of WIDIA/KENNAMETAL M200D100Z03M12RN10 Button Cutter Milling Cutter 1.000 Cutter Diameter Screw On M12

WIDIA/KENNAMETAL M200D100Z03M12RN10 Button Cutter Milling Cutter 1.000 Cutter Diameter Screw On M12

ANSI: M200D100Z03M12RN10

ISO: M200D100Z03M12RN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283432
Delivery date: 3-5 days
$391.53

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Application Round Milling, Ramp Milling, Pocket Milling, Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Cut Dia Min 0.6060 15.39MM
Tool Material Steel
Depth Of Cut Max 0.2000
Insert Size Ic 10
Flutes/Inserts 3
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RN
