  • WIDIA/KENNAMETAL M200D100Z03C100RN10L800 Button Cutter Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

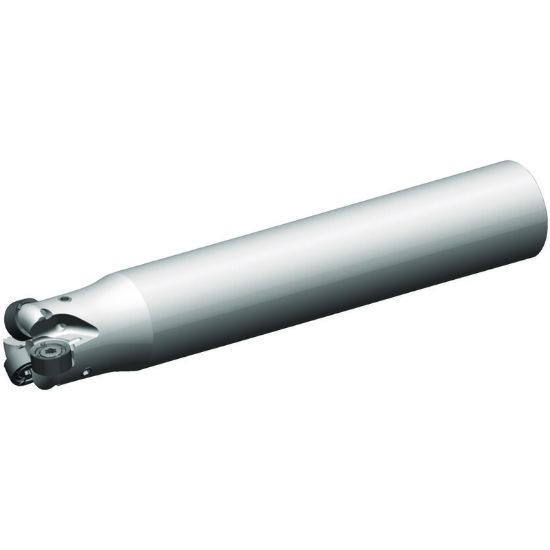

Picture of WIDIA/KENNAMETAL M200D100Z03C100RN10L800 Button Cutter Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL M200D100Z03C100RN10L800 Button Cutter Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: M200D100Z03C100RN10L800

ISO: M200D100Z03C100RN10L800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283439
Delivery date: 3-5 days
$387.80

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Pocket Milling, Face Milling
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Insert Size Ic 10
Cut Dia Min 0.6060 15.39MM
Tool Material Steel
Overall Len 8.0000 203.20MM
Cutter Dia 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Depth Of Cut Max 0.2000
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RN
