  • WIDIA/KENNAMETAL M200D100Z03C100RN10L600 Button Cutter Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

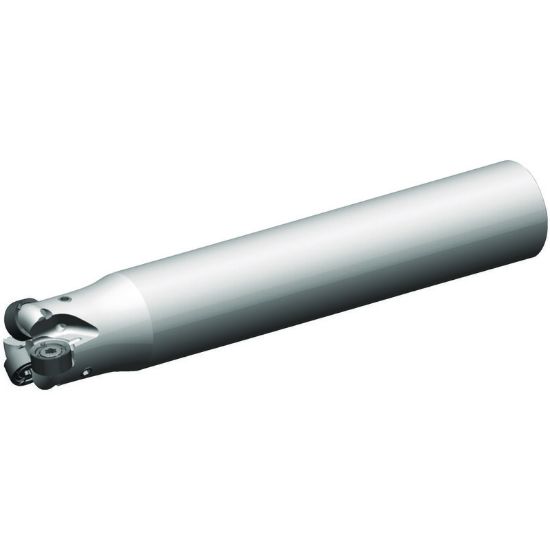

Picture of WIDIA/KENNAMETAL M200D100Z03C100RN10L600 Button Cutter Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL M200D100Z03C100RN10L600 Button Cutter Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: M200D100Z03C100RN10L600

ISO: M200D100Z03C100RN10L600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5283438
Delivery date: 3-5 days
$374.15

Features And Benefits

Double-sided, eight cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Negative
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Made In USA No
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 10
Cut Dia Min 0.6060 15.39MM
Flutes/Inserts 3
Depth Of Cut Max 0.2000
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RN
