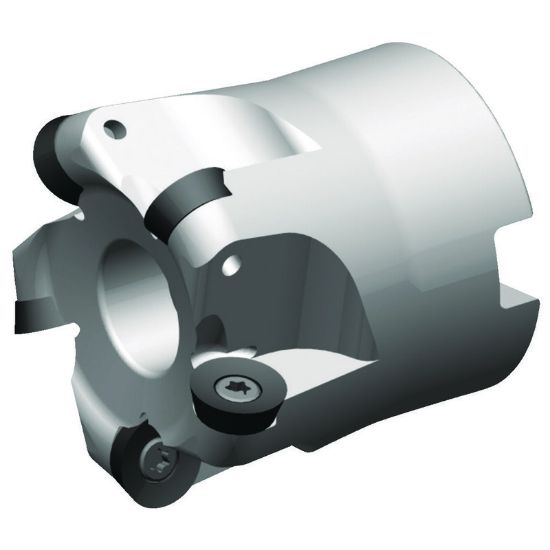

Picture of WIDIA/KENNAMETAL M170D080Z07RD12 Button Cutter Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL M170D080Z07RD12 Button Cutter Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

ANSI: M170D080Z07RD12

ISO: M170D080Z07RD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3930979
Delivery date: 3-5 days
$597.87

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Ramp Milling, Pocket Milling
Made In USA No
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 12
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Overall Len 1.9690 50.01MM
Flutes/Inserts 7
Depth Of Cut Max 0.2360
Cut Dia Min 2.6770 68.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Style RD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
