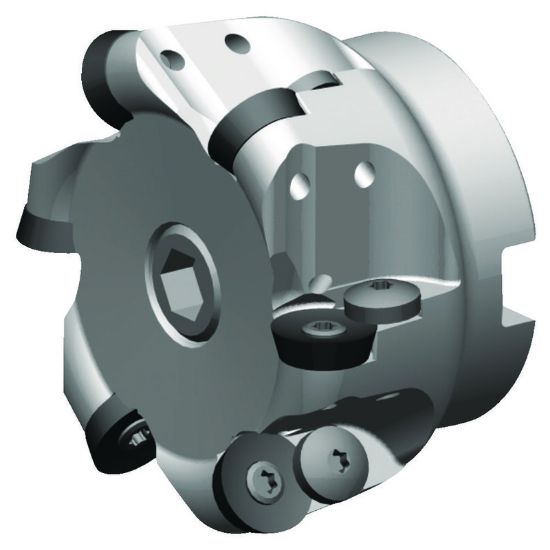

Picture of WIDIA/KENNAMETAL M170D080Z06RD16 Button Cutter Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL M170D080Z06RD16 Button Cutter Milling Cutter 3.150 Cutter Diameter Face Mill 1.063

ANSI: M170D080Z06RD16

ISO: M170D080Z06RD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3934626
Delivery date: 3-5 days
$593.91

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Pocket Milling, Round Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.3150
Tool Material Steel
Insert Size Ic 16
Flutes/Inserts 6
Overall Len 1.9690 50.01MM
Cut Dia Min 2.5200 64.01MM
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
