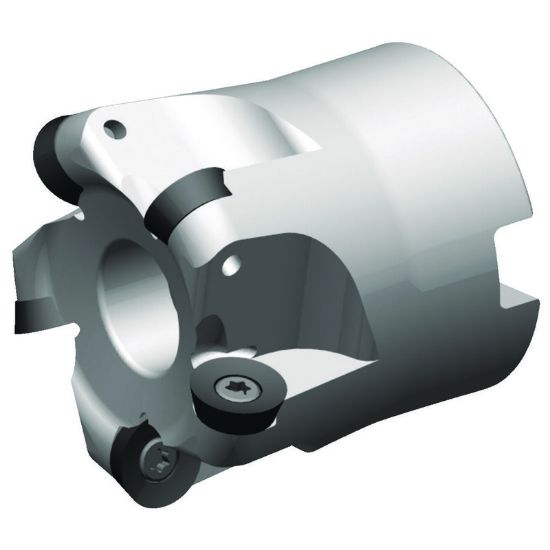

Picture of WIDIA/KENNAMETAL M170D066Z06RD12 Button Cutter Milling Cutter 2.598 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL M170D066Z06RD12 Button Cutter Milling Cutter 2.598 Cutter Diameter Face Mill 1.063

ANSI: M170D066Z06RD12

ISO: M170D066Z06RD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3930976
Delivery date: 3-5 days
$448.72

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Made In USA No
Application Ramp Milling, Round Milling, Face Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Min 2.1260 54.00MM
Overall Len 1.9690 50.01MM
Cutter Dia 2.5980 65.99MM
Flutes/Inserts 6
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Insert Size Ic 12
Depth Of Cut Max 0.2360
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
