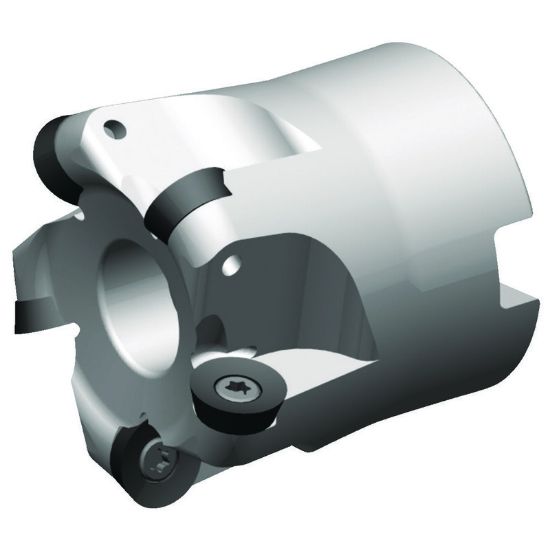

Picture of WIDIA/KENNAMETAL M170D063Z06RD12 Button Cutter Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M170D063Z06RD12 Button Cutter Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

ANSI: M170D063Z06RD12

ISO: M170D063Z06RD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3930975
Delivery date: 3-5 days
$448.72

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Round Milling, Pocket Milling, Ramp Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Cut Dia Min 2.0080 51.00MM
Flutes/Inserts 6
Cutter Dia 2.4800 62.99MM
Insert Size Ic 12
Depth Of Cut Max 0.2360
Tool Material Steel
Overall Len 1.5750 40.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
Coolant Thru Yes
