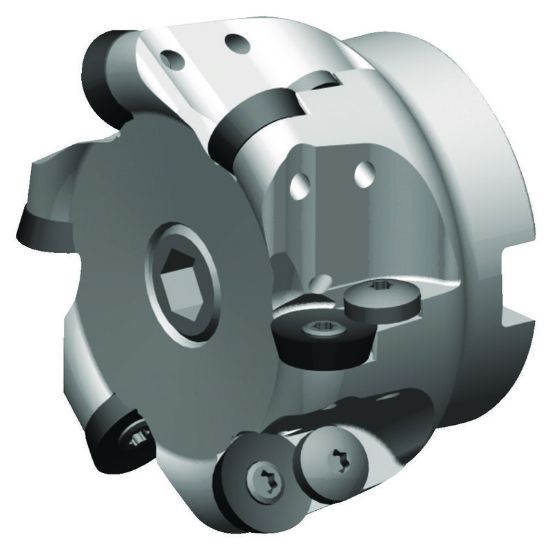

Picture of WIDIA/KENNAMETAL M170D063Z05RD16 Button Cutter Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M170D063Z05RD16 Button Cutter Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

ANSI: M170D063Z05RD16

ISO: M170D063Z05RD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3934624
Delivery date: 3-5 days
$481.72

Features And Benefits

Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mold manufacturing.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Round Milling, Face Milling, Ramp Milling
Shipping State Pennsylvania
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Min 1.8500 46.99MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Flutes/Inserts 5
Insert Size Ic 16
Depth Of Cut Max 0.3150
Cutter Dia 2.4800 62.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
